Diamond Beveling Chamfer Bit Set - 2" Tile Cone Grinder Bit, 4/5" Diamond Finger Milling Bit and 3/8" Hex Shank, 5/8"-11 Thread, for Beveling, Chamfering, Enlarging, Trimming in Tile Ceramic Stone
4.0 (78 items)
Limited Time SaleUntil the end
00
52
34
$15.59 cheaper than the new price!!
Free shipping for purchases over $99 ( Details )
Free cash-on-delivery fees for purchases over $99
Free cash-on-delivery fees for purchases over $99
See all stores
Please note that the sales price and tax displayed may differ between online and in-store. Also, the product may be out of stock in-store.
New $25.99
Product details
| Management number | 226621679 | Release Date | 2026/05/09 | List Price | $10.40 | Model Number | 226621679 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- 【Specification】Diamond Cone Tile Bit - Maximum diameter: 2" (50mm); Working diameter: 0"-2" (0-50mm); Angle: 60°; Total length: 2.1" (53mm); Working depth: 1.7" (43mm); Weight: 0.55lb; Grit: 80#. Diamond Finger Milling Bit - Diameter: 0.8" (20mm); Total length: 2.75" (70mm); Working length: 2" (50mm); Weight: 0.33lb; Grit: 45#.

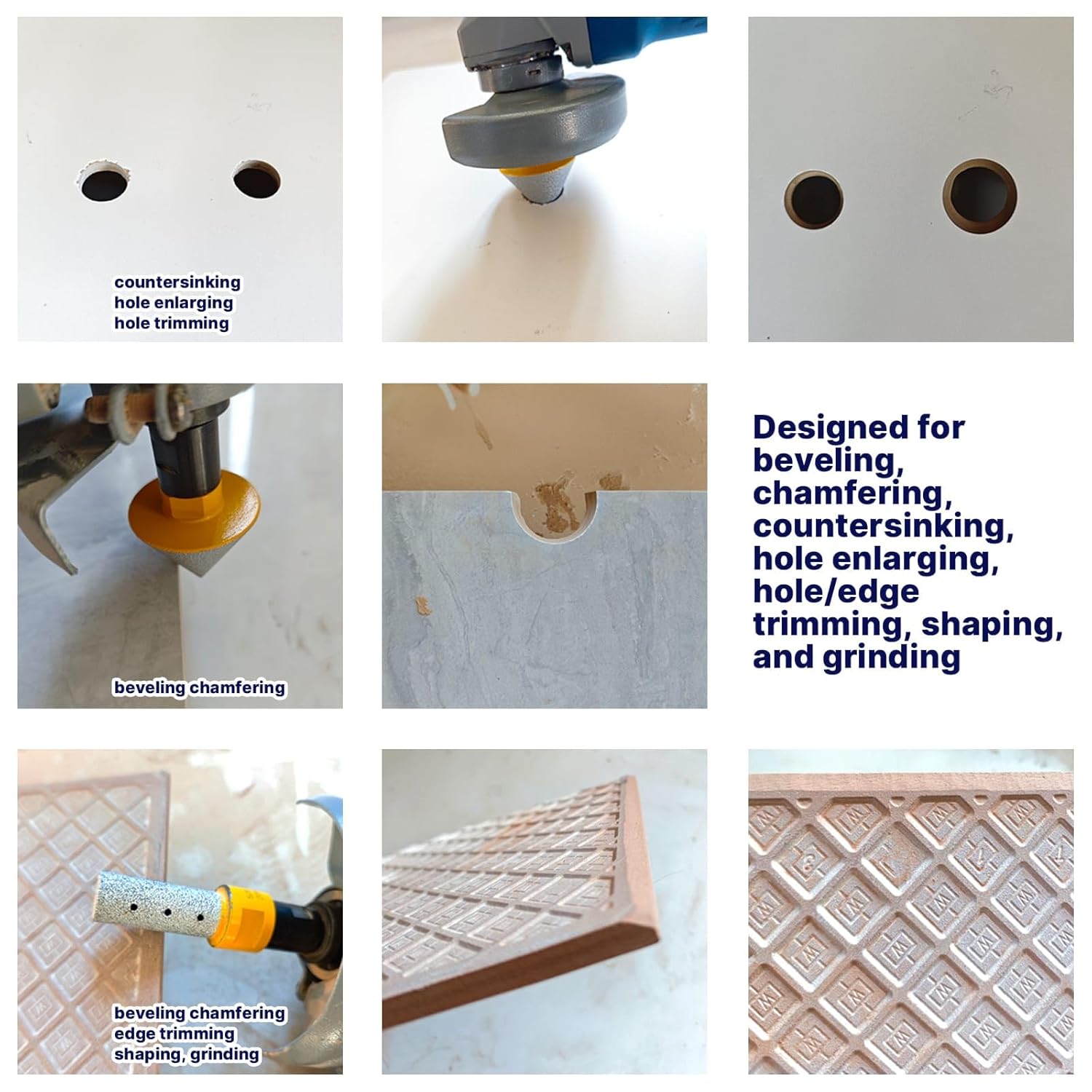

- 【Function】Designed for beveling, chamfering, countersinking, hole enlarging, hole/edge trimming, shaping, and grinding of hard brittle materials (tile, ceramic, stone, and glass, etc). The diamond tile cone grinder bit creates a 60° rounded bevel, while the diamond finger milling bit creates a plane.
- 【Tool Compatibility】5/8"-11 thread fits most angle grinders; In addition, it is equipped with a 3/8" hex shank adapter that can be connected with 5/8"-11 thread, for compatibility with standard power drills. Note: Certain materials or applications have significant RPM requirements; insufficient RPM may cause drill bits wobbling and instability. Due to the lower RPM of power drills, priority use of angle grinders is recommended.
- 【High usage rate】This diamond tile grinder cone supports hole diameters from 0"-2" (0-50mm), removing the need for multiple drill bits and helping you save time and money. Note: not intended for drilling new holes.
- 【Technology】Utilizing braze-bonded diamond technology for high strength and long-lasting durability; diamond particles are directionally aligned to ensure uniform cutting force distribution, significantly reducing edge chipping rates; 80% diamond exposure height maximizes abrasive utilization, improving cutting efficiency by 40%; compatible with both dry and wet grinding applications.
| UPC | 704754811720 |
|---|---|
| ASIN | B0FQJDK1HJ |
| Model | DBCB |
| Set Name | Diamond Beveling Chamfer Bit Set |
| Brand Name | JONAS C |
| Shank Type | Threaded |
| Unit Count | 3.0 Count |
| Item Weight | 1.1 Pounds |
| Part Number | DBCB |
| Manufacturer | JONAS C |
| Material Type | Diamond |
| Tool Flute Type | Diamond Beveling Chamfer Bits |
| Cutting Diameter | 2 and 0.8 Inches |
| Number of Pieces | 3 |
| Included Components | Diamond Cone Tile Bit, Diamond Finger Milling Bit and 3/8" Hex Shank |
| Cutting Angle String | 60 and 90 Degrees |
| Surface Recommendation | Tile Ceramic Stone Glass |
